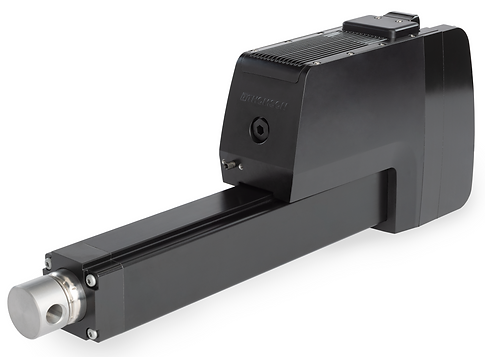

ELECTRAK XD
These smart electromechanical actuators are highlighted by onboard electronics that can eliminate the need for standalone controls. Very high power (from 5.5kN at 75mm/s up to 25kN at 16mm/s) as well as strokes of up to 1.2m opens a new, wider range of hydraulic applications to electric conversion. And they meet the most extreme OEM component environmental acceptance tests, including IP69K.
​
Highlight features:​
-
Constant speed irrespective of load
-
Speed control as standard
-
Electronic Monitoring Package as standard
-
Low-level signal motor switching as standard
-
Optional manual override and brake release
-
Optional integrated shock load dampening
-
Overload Protection
-
Electronic trip point calibration
-
End-of-stroke, voltage, current monitoring
-
Standard anti-rotation actuation
-
RoHS and REACH (EU) Certified. CE and UKCA Compliant
-
Dynamic / Holding brake
-
Temperature monitoring
-
Temperature compensation
-
Flying lead cables
-
Front/rear clevis options
​
Additional options available:
-
LXX: Low Level Signal Switching + Speed Control + Force Feedback Output
-
LXP: LXX + Position Feedback Output
-
LLX: LXX + End-of-stroke Indication Outputs
-
LLP: LXP + LLX
-
PLS: LXX + Programmable end-of-stroke limits
-
COO: CANopen + Closed Speed Control
-
CNO: CAN bus SAE J1939 + Closed Loop Speed Control
(both COO and CNO includes diagnostics, position feedback, overload indication and dynamic force feeback)
​
